S0 User Manual
S0 User Manual

S0 User Manual

If any question, contact us https://shaks.channel.io/
ย
[ Index ]

Compatible Device & Service

S0 is supporting android, Windows PC, Notebook, PS3, Android Phone. Please select a mode matching your device. and check your service to play!
ย

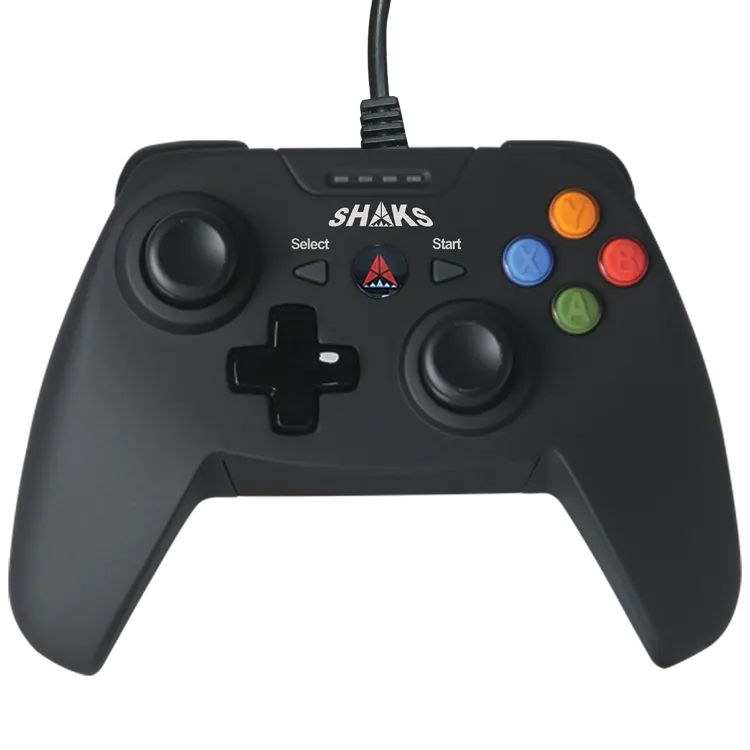

Button layout & Status indication by LED

Please check the button/key name and LED indication to see the status of your gamepad.
ย
ย

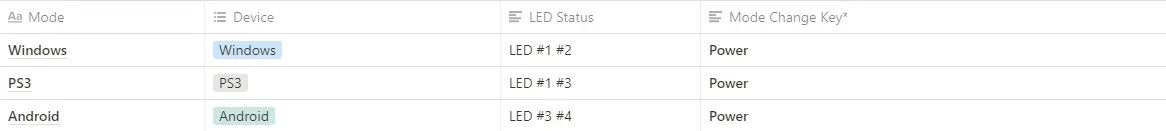

Mode selection according to your device

Press the 'Power button' for 5 seconds.
  • Mode Sequence
The mode will change sequentially from Windows X-input โ†’ PS3 โ†’ Android D-input.
notion image
ย

Connect your device

Once you correctly choose the mode, power on.
  • Power on: Press 'Power Button ' for 3 seconds. When the gamepad is turned on by pressing the 'Power button'. Change mode according to the above table.
Connecting with an Windows PC
  1. Connect USB cable to PC.
  1. Change mode by pressing 'Power button'.
  1. When โ€œPairingโ€ is successful: LED signals #1,2 light up.
Connecting with a PS3
  1. Connect USB cable to PS3.
  1. Press 'Power button' for 5 seconds in Windows mode.
  1. When โ€œPairingโ€ is successful: LED signals #1 #3 light up.
Attention! Recommended to use Windows 10 or later. If you are using Windows 7, please install โ€œXbox 360 driverโ€ driver first on your PC that you can find on our website.
Connecting Android phone/tablet and TV box by Bluetooth
  1. Connect USB cable to device
  1. Press 'Power button' for 5 seconds in PS3 mode.
  1. When โ€œPairingโ€ is successful: LED signals #3, #4 light up.
Notice: In Android mode, vibration function is not supported.
Notice: Press Power button for 5 seconds in Android mode to switch to Windows X-input mode.
ย

Compatible Gamelist Information

Please visit our compatible game list for searching relative information.
ย

Useful information

Quick Guide : For download, click toggle key and download ~~
Press the 'Power button' for 5 seconds.
